ElbowData

Features ElbowData

With the first version [1.3.7] of PipingData, discover the power of data visualization.

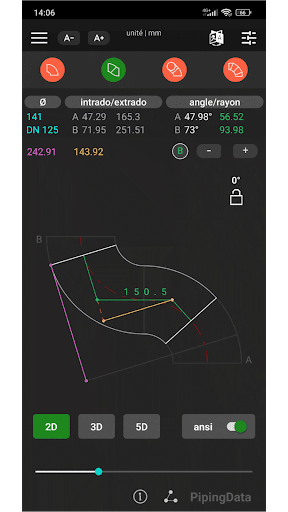

Explore results instantly by hovering over piping accessories, combined with a flat design, an intuitive, clean interface, optimized for a modern experience.Features:Interfaces:Interactive elbowInteractive double elbows on the same planeInteractive oriented double elbowsInteractive sliced elbowAll four interfaces are in FLAT DESIGN with data exploration by hovering over the elbows.
Angles will be optimized based on the position and area of the hover.
This operation is called DATA-VISUALIZATION.Settings:Utilize data based on numbers with precision to one or two decimals or even integers for the angle and data.For visual comfort, colors are subdued with the option to change font sizes.Inch/mm conversion.Languages:You have a choice of 18 languages with English as the default (see photos).Utilities:The Download section provides documents for download/print/share (ABAC, isometric sheets with or without nomenclature).Links to useful websites are also available.This application has been developed based on three fundamental principles, with the goal of minimizing interactions for maximum results:Flat designData visualizationErgonomicsIf you have any suggestions or comments about the application, you can contact the service via email:[email protected]
